Electronic stability program (ESP), location of electrical components - GF42.45-P-0001-03C

Model 210 with engine 119

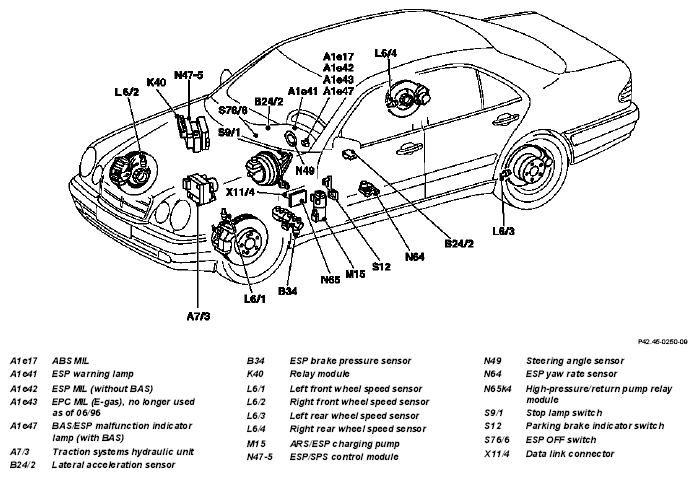

Fig 1: Identifying Electronic Stability Program (ESP) Electrical Components (Model 210 With Engine 119)
G04635316Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
