Electronic stability program (ESP) and SPS location of components - GF42.45-P-0001-01C

Model 210

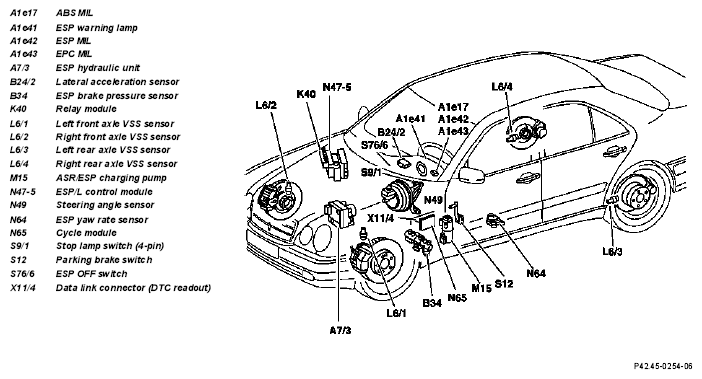

Fig 1: Identifying Electronic Stability Program (ESP) And SPS Components
G04635313Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
