ETS Hydraulic unit, design - GF42.35-P-4000-01A

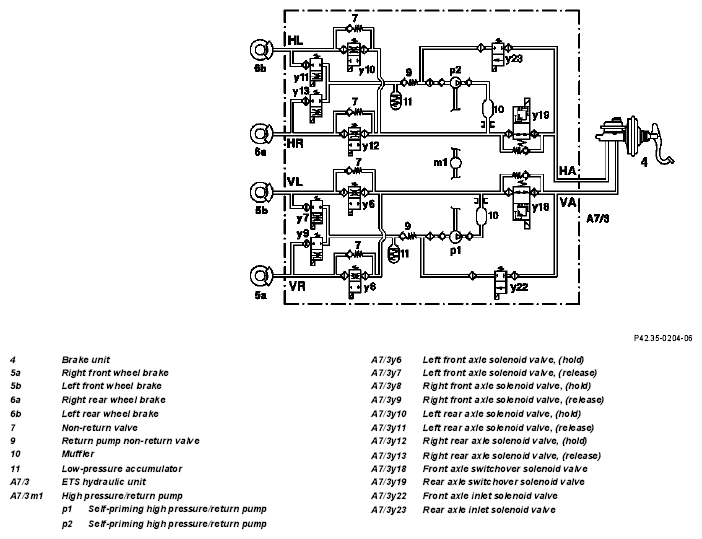

Fig 1: Identifying ETS Hydraulic Unit, Design

G04635291

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
