Removing and installing exterior door handle on front door - AR72.10-P-2400F

MODEL 210

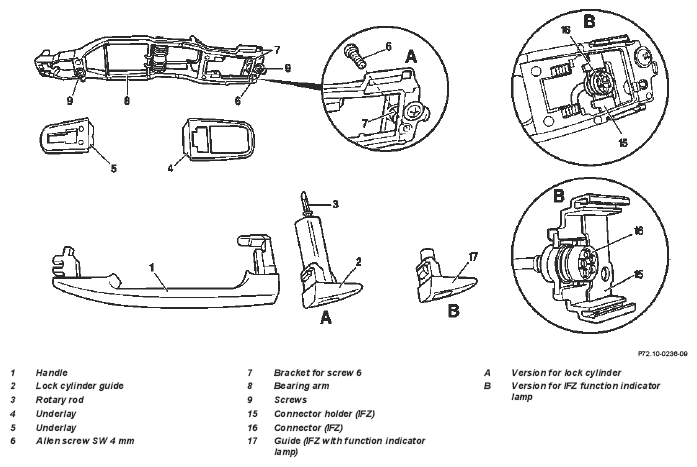

Fig 1: Identifying Exterior Door Handle On Front Door Components (1 Of 2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 2: Identifying Exterior Door Handle On Front Door Components (2 Of 2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Removing
1	Pull door sealing frame out of channel in area of door lock
2	Loosen 4 mm Allen screw (6)	Accessible via flap on edge of door, Allen screw (6) is prevented from falling by holder (7)
3	First pull guide (2 or 17) out toward rear and then toward outside
4	Pull handle (1) and underlay (4) to the rear out of bearing bracket (8) and remove	Vehicles with IFZ function indicator lamp, pull connector (16) forwards out of guide and leave it behind connector holder (15)
5	Remove base (5)	Bearing bracket (8) can be removed via access cover in inner door panel
	Installing
6	Install base (5)	Bearing bracket (8) installed
7	Turn eccentric adjustment screw (10) toward outside	Easier door handle fitting
8	Install handle (1) and underlay (4) in bearing bracket (8) and guide at the same time into the operating lever(12) of the door lock
9	Insert guide (2 or 17)	Vehicles with IFZ function indicator lamp, insert connector (16) in connector holder (15) and ensure correct position relative to guide (17)
10	Screw in 4 mm Allen screw (6) and tighten		*BA72.10-P-1005-01A
11	Adjust clearance between handle (1) and control lever (12) with eccentric adjustment screw (10)	Accessible via opening (13) on the end of the door. Use cross-head screwdriver	*BE72.10-P-1001-01A
12	Check clearance by pulling on handle (1) until resistance is felt		*BE72.10-P-1001-01A
13	Install door sealing frame
14	Carry out operational check

Test and adjustment values for front door

Number	Designation		Model 202	Model 210
BE72.10-P-1001-01A	Clearance	mm	2 (± 1)	2 (± 1)

Front door

Number	Designation		Model 202	Model 210
BA72.10-P-1005-01A	Screw of door handle of front door	Nm	3	3
