Removing and installing door liner on front door - AR72.10-P-1000FB

MODEL 210 with CODE (979) Special protection version with CODE (Z04) Light armoring with CODE (Z06) B6 armoring

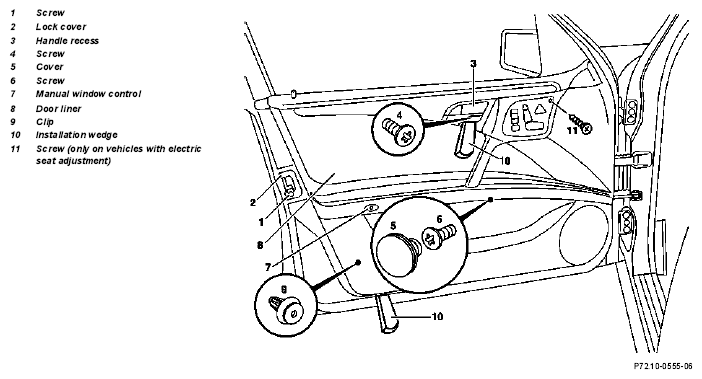

Fig 1: Identifying Door Liner On Front Door Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Removal, installation
1	Unscrew screw (1) on lock cover (2) and remove lock cover downward
2	Press off handle recess (3) with installation wedge (10)		Figure
3	Unscrew screw (4) in area of door interior actuation mechanism
4	Press off cover (5) below armrest and unscrew screw (6)
5	Unscrew screw (11)	Only on vehicles with electric seat adjustment
6	Unclip entry lamp, pull off electric lead
7	Press door liner (8) off of inner door panel at bottom, front and rear with installation wedge (10)	Insert installation wedge directly next to each clip	Figure
8	Remove shaft for manually rolling down window (7) from door liner (8)	Only on vehicles with front power windows
9	Unhook control cable from door interior actuating mechanism
10	Disconnect electrical connections on door liner
11	Put down door liner
12	Check foil and clips on inner door panel	Replace damaged foil and clips
13	Check clips on door liner	Replace damaged clips
14	Reinstall in opposite order

Fig 2: Identifying Installation Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
