Adjust rear door - AR72.20-P-3510B
MODEL 210.2

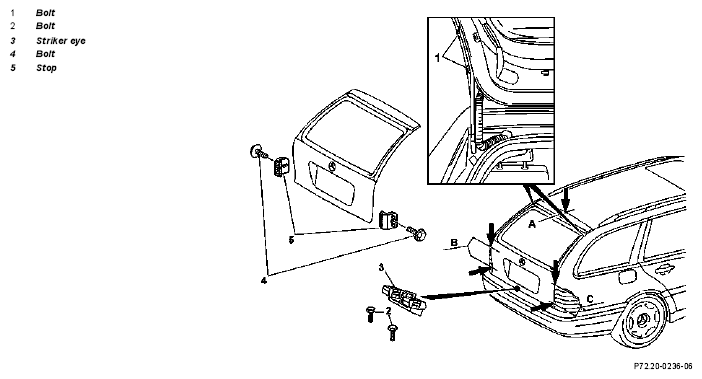

| Adjust on door hinge | |||
| 1 | Loosen bolts (1) from left and right door hinge | ||
| 2 | Loosen bolts (2) at striker eye (3) | ||
| 3 | Slacken bolt (4) at stop (5), and push stop towards rear | ||
| 4 | Adjust rear door such that top edge of rear door is flush with outer skin of roof | Figure | |
| Gaps dimensions at hoods, doors and covers | AR60.00-P-0700-01FA | ||
| 5 | Tighten bolts (1) on hinge | *BA72.20-P-1004-02A | |
| Adjust striker eye | |||
| 6 | Adjust rear door by moving striker eye (3) so that edge of rear door is flush with edge of fender | Figure | |
| Gaps dimensions at hoods, doors and covers | AR60.00-P-0700-01FA | ||
| 7 | Tighten bolts (2) on striker eye (3) | *BA72.20-P-1002-02A | |
| 8 | Adjust stop (5) such that stop abuts when rear door is closed | ||
| 9 | Tighten bolt (4) at stop (5) |
Test and adjustment values, gap dimensions at hoods, doors and covers
| Number | Designation | Model 210.2 | |||
|---|---|---|---|---|---|
| BE60.00-P-1004-01A | Gap dimension | Rear door to roof | Dimension "E" | mm | 5.0 (± 0.5) |
| Rear door to D-pillar | Dimension "F" | mm | - | ||
| Rear door to D-pillar | Dimension "G" | mm | - | ||
| Rear door to rear fender | Dimension "M" | mm | 4.5 (± 0.5) | ||
| Fig., see | AR60.00-P-0700-01FA | ||||
| Number | Designation | Model 210.2 | |
|---|---|---|---|
| BA72.20-P-1002-02A | Bolts to striker eye | Nm | 32 |
| BA72.20-P-1004-02A | Bolts, hinge door to rear door | Nm | 28 |
