Adjust front door - AR72.10-P-0550F
MODEL 210

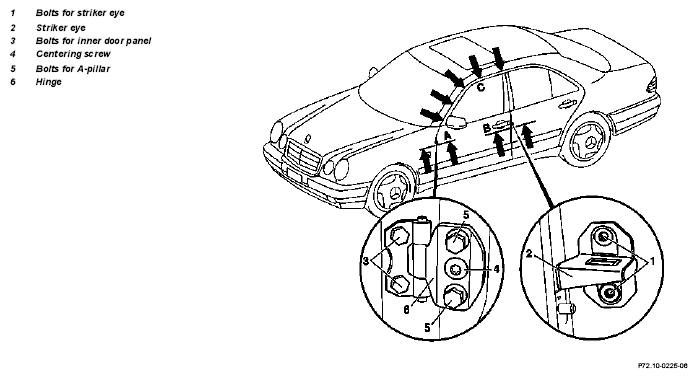

| 1 | Remove striker eye (2) | *BA72.10-P-1004-01A | |
| 2 | Inspect sizes of gaps at door all round | Figure | |
| Model 210.0 | AR60.00-P-0700-01F | ||
| Model 210.2 | AR60.00-P-0700-01FA | ||
| Dimensions | *BE60.00-P-1002-01A | ||
| 3 | Loosen bolts (3) from inner door panel, tighten and adjust gap dimension by moving front door | *BA72.10-P-1001-01A | |
| 4 | Loosen bolts (5), tighten with centering screws (4) on hinge, adjust contour of driver's door at hinge side | *BA72.10-P-1001-01A | |
1 mm deeper. |
|||
| *BA72.10-P-1002-01A | |||
| 5 | Screw on striker eye (2). | Do not tighten | |
| 6 | Completely close front door and adjust contour on striker eye by moving striker eye | Door paneling (B) should be flush with front door or should extend max. 1 mm. | |
| 7 | Tighten striker eye | *BA72.10-P-1004-01A | |
| 8 | Check contour and fit at window frame (C) in relation to roof paneling and front wall pillar, adjust if possible | The outer lip of the door sealing frame should be flush with the edge of the roof paneling | |
| 9 | Check door for easy motion |
Test and adjustment values, gap dimensions at hoods, doors and covers
| Number | Designation | Model 210.0 | Model 210.2 | |||
|---|---|---|---|---|---|---|
| BE60.00-P-1002-01A | Gap dimension | Front door to A-pillar | Dimension "B" | mm | 6.5 (± 0.5) | 6.5 (± 0.5) |
| Front door to fender | Dimension "H" | mm | 4.5 (± 0.5) | 4.5 (± 0.5) | ||
| Front door to rear door | Dimension "I" | mm | 5.5 (± 0.5) | 5.5 (± 0.5) | ||
| Front door to roof | Dimension "C" | mm | 6.5 (± 0.5) | 6.5 (± 0.5) | ||
| Rear door to upper side section | Dimension "D" | mm | 6.5 (± 0.5) | - | ||
| Rear door to lower side section | Dimension "J" | mm | 4.0 (± 0.5) | 4.0 (± 0.5) | ||
| Fender to A-pillar | Dimension "Q" | mm | - | - | ||
| Front door to rear fender | Dimension "P" | mm | - | - | ||
| Fig., see | AR60.00-P-0700-01F | AR60.00-P-0700-01FA | ||||
| Number | Designation | Model 210 | |
|---|---|---|---|
| BA72.10-P-1001-01A | Bolt to door hinge | Nm | 37 |
| BA72.10-P-1002-01A | Centering screw to door hinge on A-pillar | Nm | 32 |
| BA72.10-P-1004-01A | Bolt to striker eye | Nm | 32 |
