Location of rear door control module - GF72.29-P-4102-01A

Location of components

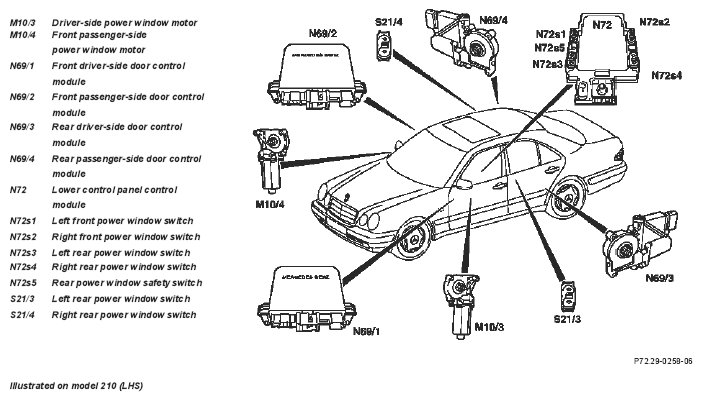

Fig 1: Identifying Power Window Components - Shown On Model 210

G04632060

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
