Removing and installing rear roof frame cover - AR68.30-P-4470F

MODEL 210.2

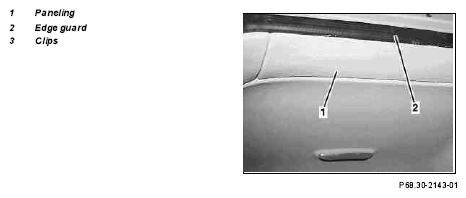

Fig 1: Identifying Rear Roof Frame Cover Components - Model 210.2 (1 Of 2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 2: Identifying Rear Roof Frame Cover Components - Model 210.2 (2 Of 2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Removal, installation
1	Remove edge guard (2) in area of paneling (1)
2	Remove paneling from D-pillar on left and right in area of paneling (1)		AR68.30-P-4495F
3	Carefully press off paneling (1) at front and rear with long wedge	Position long wedge directly at clips (3)	Figure
4	Remove paneling (1)	Installation:  Check clips (3), replace if necessary
5	Install in opposite order

Fig 3: Long Wedge (64 115 589 03 59 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
