Removing and installing liner on tailgate - AR68.30-P-1050B

MODEL 210.2

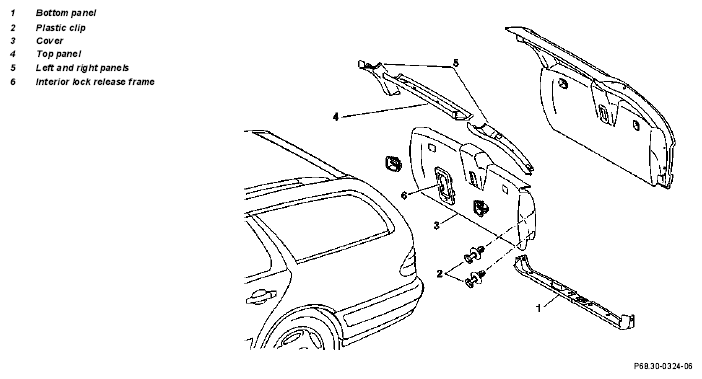

Fig 1: Identifying Liner On Tailgate Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Removal, installation
1	Remove bottom panel (1)
2	Remove frame (6) for interior lock release
3	Remove plastic clip (2)
4	Remove panel (3)	Slide panel upward and remove
6	Unhook top panel (4) with long wedge and remove		Figure
7	Unhook left and right panels (5) with long wedge and press off toward inside of door		Figure
8	Reinstall in opposite order

Fig 2: Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
