MSC test of electrical system exterior folding mirror - AD88.79-P-6000-15A

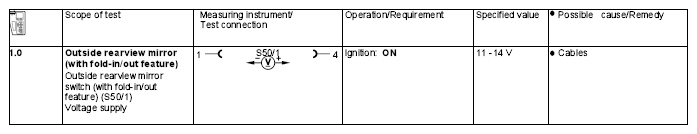

Fig 1: MSC Test Of Electrical System Exterior Folding Mirror

G04634899

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
