MSC test of electrical system driver exterior mirror memory - AD88.79-P-6000-18BB

Ignition: OFF

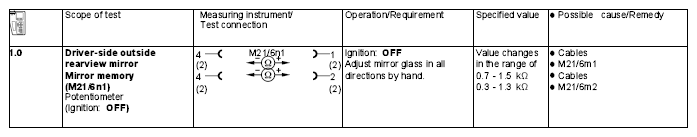

Fig 1: MSC Test Of Electrical System Driver Exterior Mirror Memory
G04634903Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
