Mirror, steering column adjustment, heated mirrors (MSC), location of components - GF88.79-P-0006-01B

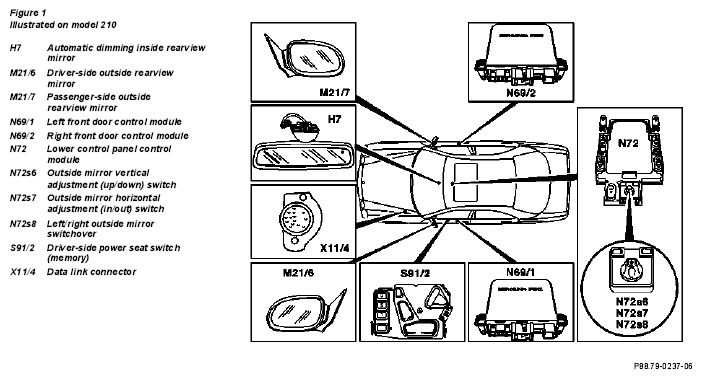

Fig 1: Identifying Mirror, Steering Column Adjustment, Heated Mirrors (MSC) Components Location
G04634868Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Location of connectors on control module

Fig 2: Identifying Control Module Connectors Location
G04634869Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
