Mirror, steering column adjustment, heated mirrors (MSC) networking of components - GF88.79-P-0006-02B

Figure 1

Model 210 only

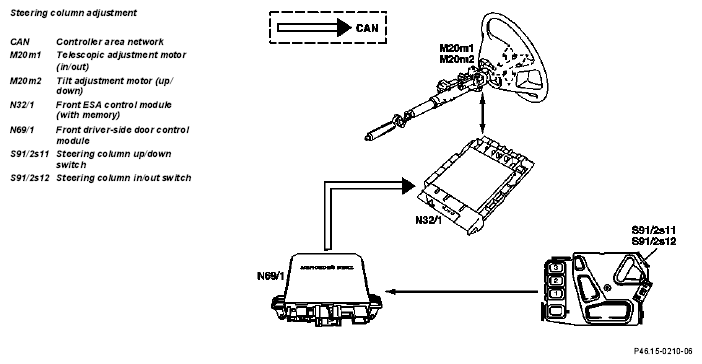

Fig 1: Identifying Steering Column Adjustment Networking Components - Steering Column Adjustment

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Figure 2

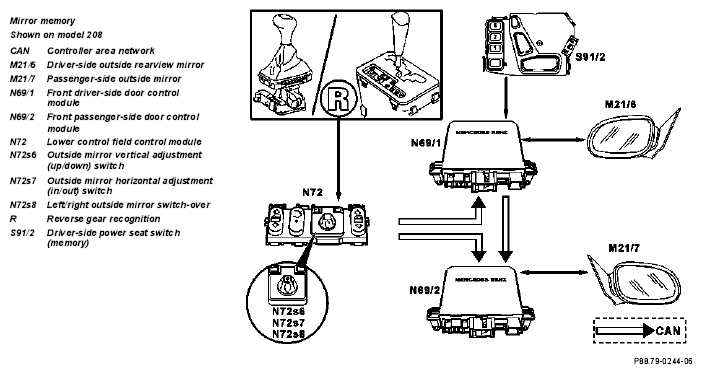

Fig 2: Identifying Mirror Networking Components - Mirror Memory

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Figure 3

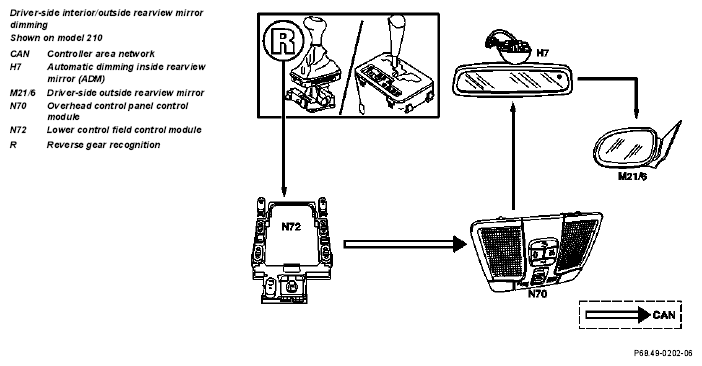

Fig 3: Identifying Driver-Side Interior/Outside Rearview Mirror Dimming Networking Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Figure 4

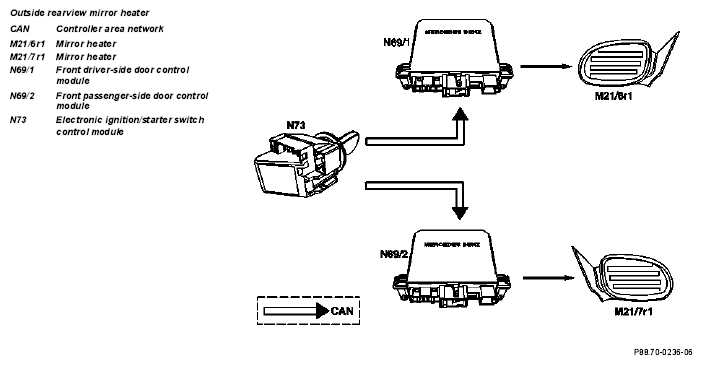

Fig 4: Identifying Outside Rearview Mirror Heater Networking Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
