Mirror, steering column adjustment, heated mirrors (MSC) networking of components - GF88.79-P-0006-02A

Fig. 1

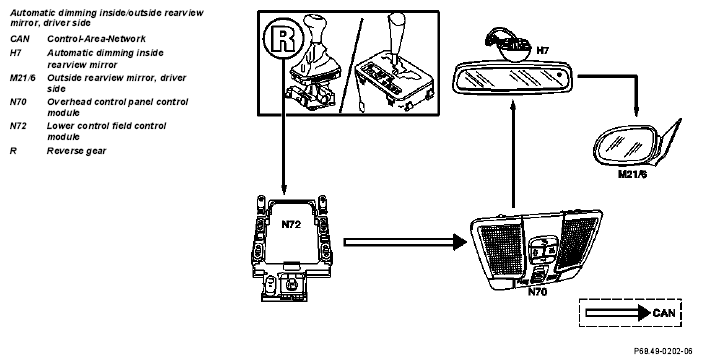

Fig 1: Identifying Mirror Networking Components - Automatic Dimming Inside/Outside Rearview Mirror, Driver Side

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Figure 2

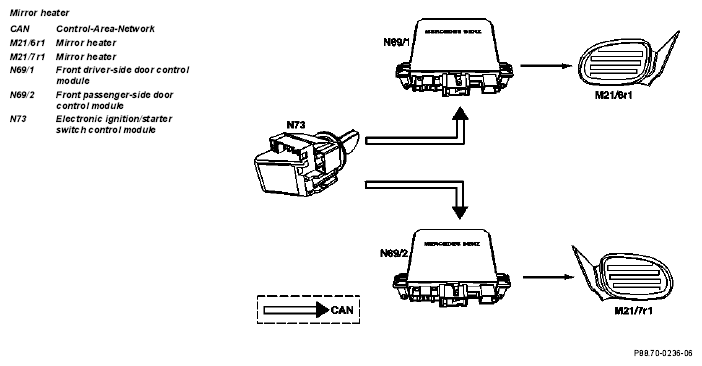

Fig 2: Identifying Heated Mirrors (MSC) Networking Components - Mirror Heater

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
