Mirror, steering column adjustment, heated mirrors (MSC) location of components - GF88.79-P-0006-01A

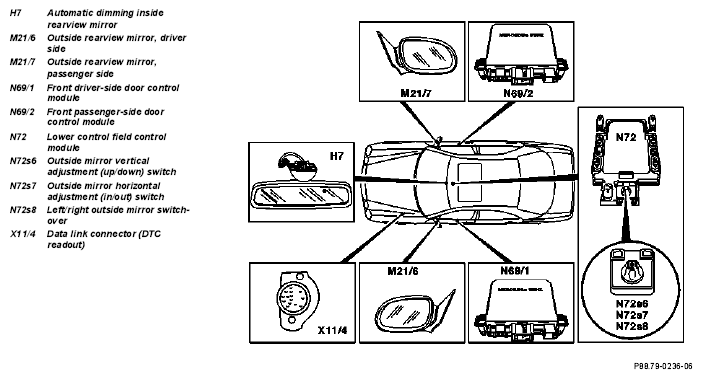

Fig 1: Identifying Mirror, Steering Column Adjustment, Heated Mirrors (MSC) Components Location
G04634867Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
