Electric outside rearview mirror adjustment, general - GF88.79-P-9611-01C

Interlinkage

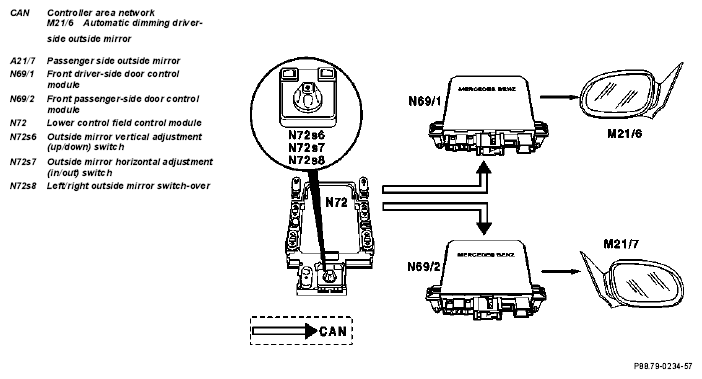

Fig 1: Identifying Electric Outside Rearview Mirror Adjustment Components - Interlinkage

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Function

When one of the mirror adjustment switches (N72s6, N72s7) in the lower control field control module (N72) is actuated the outside mirrors (M21/6, M21/7) are adjusted to the desired position.

Function sequence

The desired adjustment for the outside mirrors is transferred from the lower control field control module (N72) to the corresponding door control module (N69/1, N69/2) as a CAN message. The door control module (N69/1, N69/2) controls the associated outside mirror motor by means of a direct line.
