Pneumatic connections, diagnosis, advanced information, PSE - AD80.20-P-2000-07D

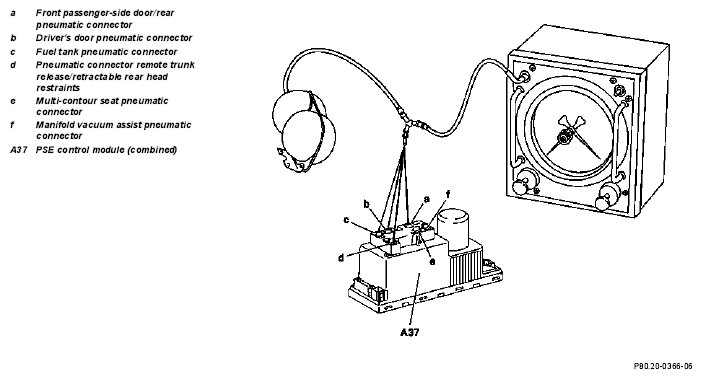

Fig 1: Identifying Pneumatic Connections, Diagnosis, Advanced Information, PSE Components
G04635767Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
