Ignition Switch/Steering Lock
>>
Anti-Theft & Central Locking System - Self-Diagnostic System - 210 Chassis
>>
Self-Diagnostic System
>>
Electronic ignition switch control module, testing electrical system (RFL/RCL) - AD80.35-P-6000-35A
Electronic ignition switch control module, testing electrical system (RFL/RCL) - AD80.35-P-6000-35A

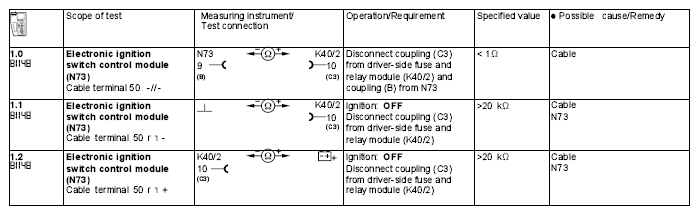

Fig 1: Electronic Ignition Switch Control Module, Testing Electrical System (RFL/RCL)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
