Glass breakage sensor, location - GF80.50-P-4107-01B

Model 210.2

Location, model 210.2 up to 31.5.99

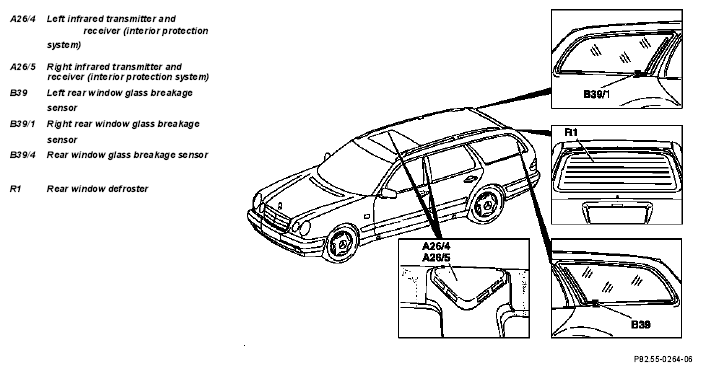

Fig 1: Identifying Glass Breakage Sensor Location - Model 210.2 Up To 31.5.99
G04635741Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Location, model 210.2 as of 01.06.99

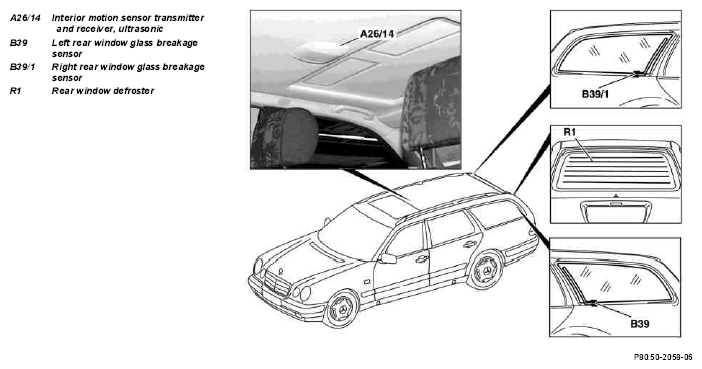

Fig 2: Identifying Glass Breakage Sensor Location - Model 210.2 As Of 01.06.99
G04635742Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
