Central locking (CL), pneumatic system equipment, location of electric components - GF80.20-P-0005-05D

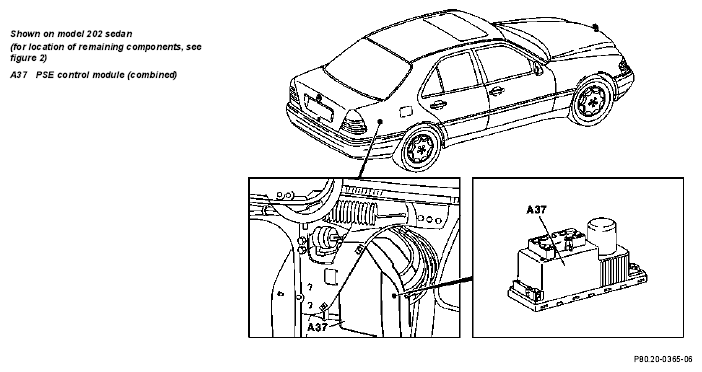

Figure 1

Models 202, 208

Fig 1: Identifying Central Locking (CL), Pneumatic of electric components - Show On Model 202 Sedan

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

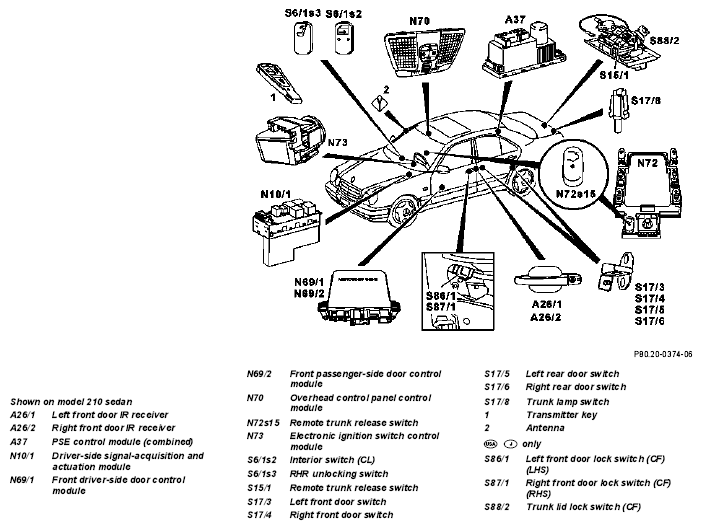

Figure 2

Model 210

Fig 2: Identifying Central Locking (CL), Pneumatic Of Electric Components - Model 210

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
