Central locking (CL), location of pneumatic components - GF80.20-P-0005-04E

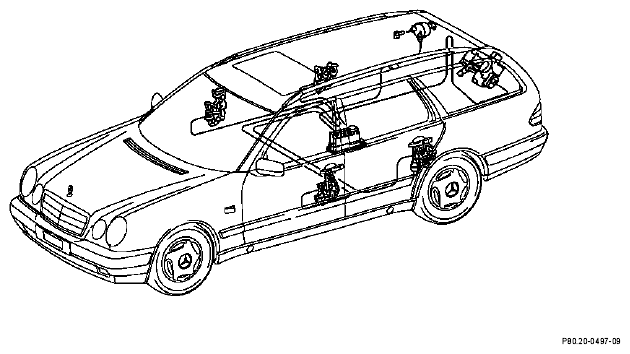

Fig 1: Identifying Central Locking (CL) Of Pneumatic Components Description (3 Of 4)
G04635642Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

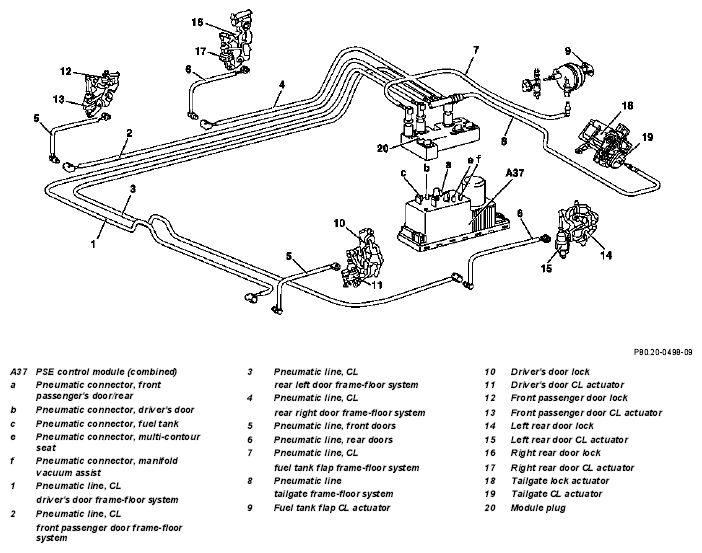

Fig 2: Identifying Central Locking (CL) Of Pneumatic Components Description (4 Of 4)
G04635643Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
