Central locking (CL), location of pneumatic components - GF80.20-P-0005-04D

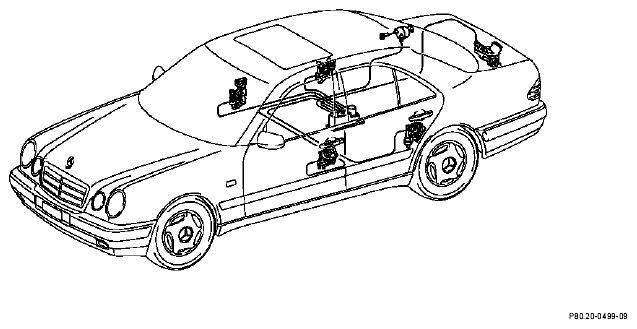

Fig 1: Identifying Central Locking (CL) Of Pneumatic Components Description (1 Of 4)
G04635640Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

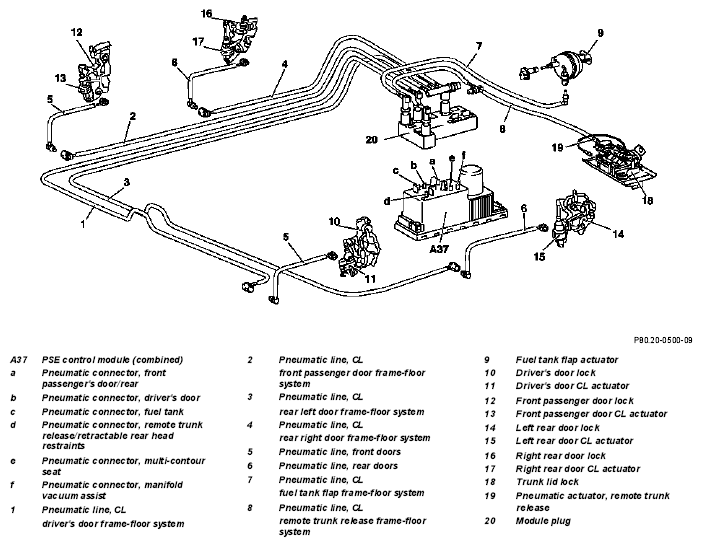

Fig 2: Identifying Central Locking (CL) Of Pneumatic Components Description (2 Of 4)
G04635641Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
