Central locking (CL), location of electric components - GF80.20-P-0005-02D

Figure 1

Models 202, 208

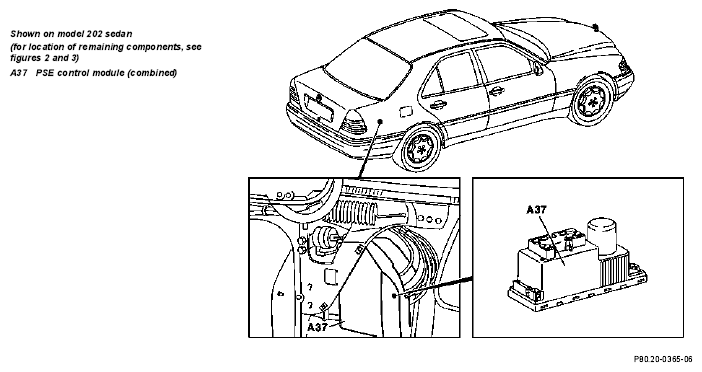

Fig 1: Identifying Central Locking (CL) Of Electric Components Location - Models 202, 208

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Figure 2

Model 210

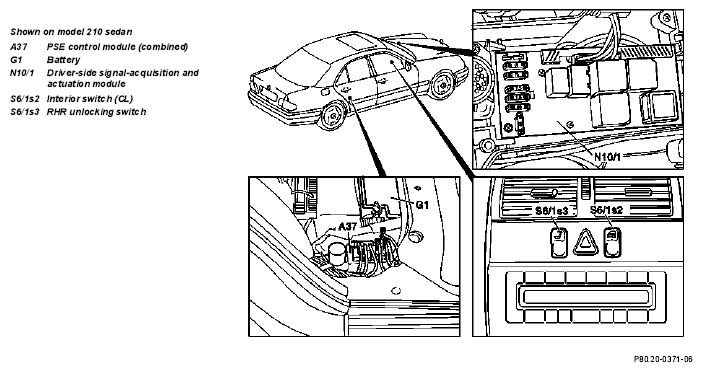

Fig 2: Identifying Central Locking (CL) Of Electric Components Location - Show On Model 210 Sedan (1 Of 2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Figure 3

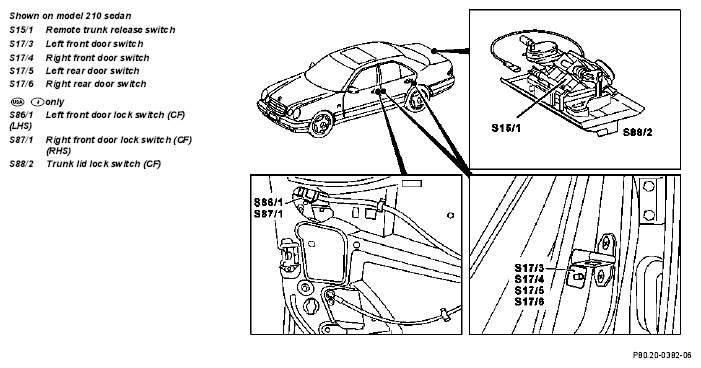

Fig 3: Identifying Central Locking (CL) Of Electric Components Location - Show On Model 210 Sedan (1 Of 2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
