Anti-Theft & Central Locking System - Basic Knowledge - 210 Chassis
>>
Basic Knowledge
>>
Central locking (CL), location of components - GF80.20-P-0005-01A
Central locking (CL), location of components - GF80.20-P-0005-01A
Location of components

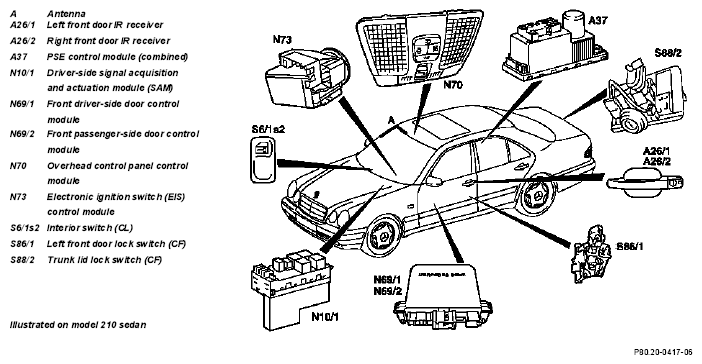

Fig 1: Identifying Central Locking (CL) Components Location
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
