Central locking (CL), interlinkage of electric components - GF80.20-P-0005-03E

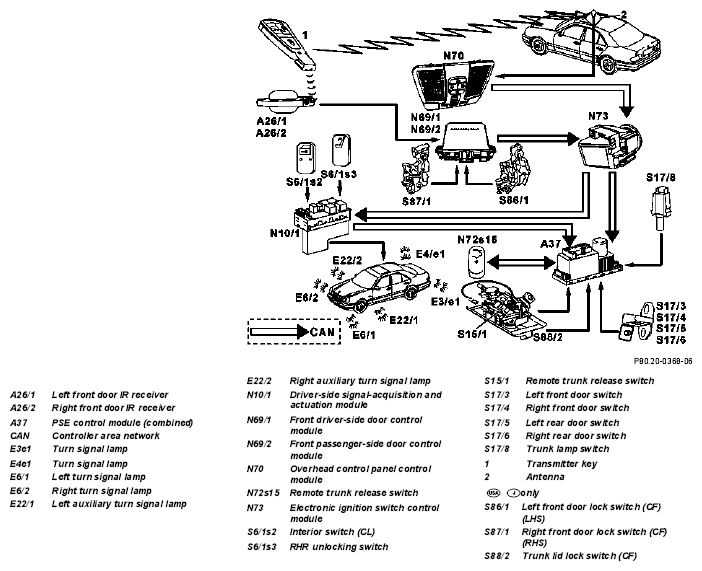

Fig 1: Identifying Central Locking (CL) Interlinkage Of Electric Components - Show On Model 210 Sedan
G04635639Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
