Central locking (CL), PSE control module, interlinkage of electric components - GF80.20-P-0005-06E

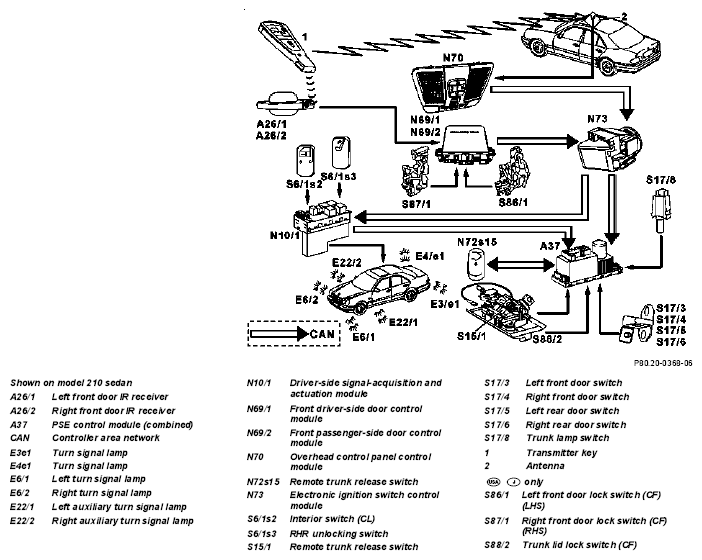

Fig 1: Identifying Central Locking (CL), PSE Control Module, Interlinkage Of Electric Components - Show On Model 210 Sedan
G04635646Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
