Anti-theft alarm (ATA), location of components - GF80.50-P-0001-02I

Models 202, 208, 210 as of 6/98

Location of components

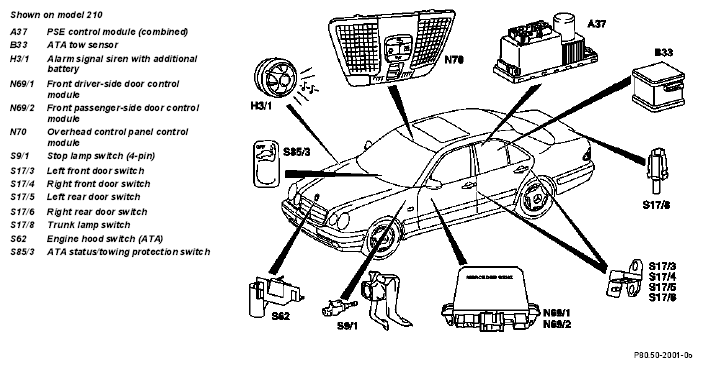

Fig 1: Identifying Anti-Theft Alarm Components Location - Show On Model 210
G04635724Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
