Anti-theft alarm (ATA), location of components - GF80.50-P-0001-02A

Model 202 as of 6.97, 208, 210.081/281 and 210 as of 1.3.97, up to 31.5.98

Location of components

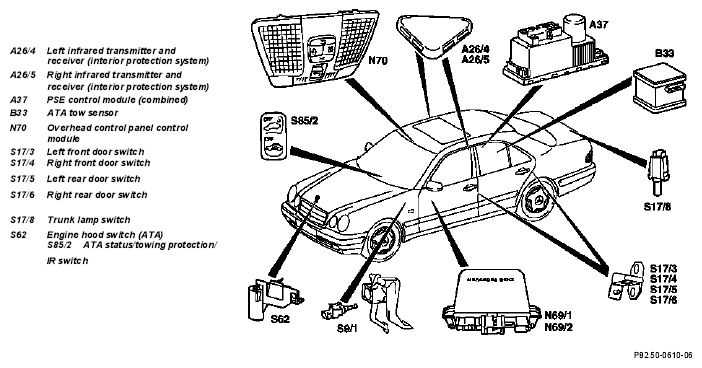

Fig 1: Identifying Anti-Theft Alarm Components Location
G04635722Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
