Removing and installing rear dome lamp - AR82.20-P-0113F

MODEL 210.0 /2 with CODE (877) Reading lamp in rear

Illustrated on model 210 sedan

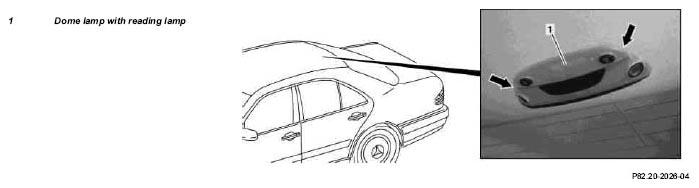

Fig 1: Locating Rear Dome Lamp

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Removal, installation
1	Unclip dome lamp with reading lamp (1) from headliner (arrows)		Fig 2
2	Disconnect electrical connectors
3	Install in opposite order

Fig 2: Identifying Installation Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
