Xenon headlamps (XENON) test of electrical system right low beam - AD82.10-P-6001-02B
Xenon headlamps (XENON) test of electrical system right low beam - AD82.10-P-6001-02B
Models 208, 210 right-hand steering

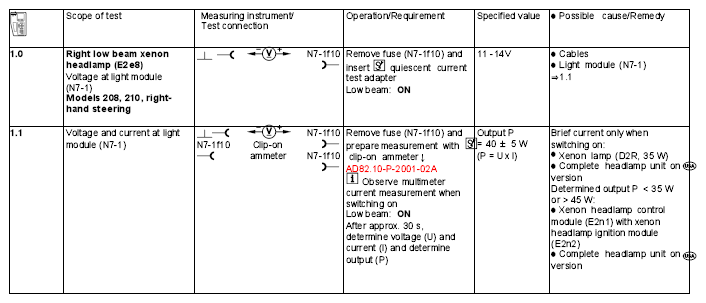

Fig 1: Xenon Headlamps (Xenon) Test Of Electrical System Right Low Beam
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
