Home >> Mercedes Benz >> 1997 >> E320 >> Repair and Diagnosis >> Accessories & Equipment >> Wiper/Washer Systems >> Electrical System - Self-Diagnostic System - 210 Chassis >> Self-Diagnostic System >> TELE AID test of electrical system roof antenna GPS/cellular telephone (GPS component) - AD82.95-P-6000-10A

TELE AID test of electrical system roof antenna GPS/cellular telephone (GPS component) - AD82.95-P-6000-10A

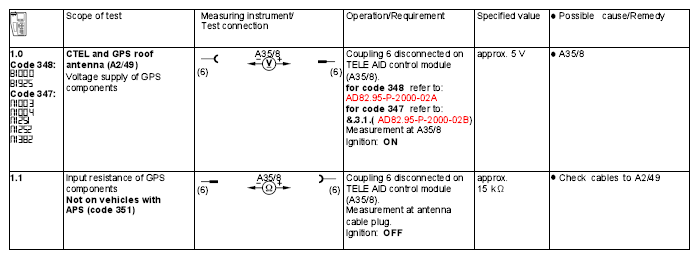

Fig 1: TELE AID Test Of Electrical System Roof Antenna GPS/Cellular Telephone (GPS Component)
G04634840Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
