TELE AID test of electrical system connection to emergency tensioning retractor (ETR) with airbag (AB) control module - AD82.95-P-6000-16A

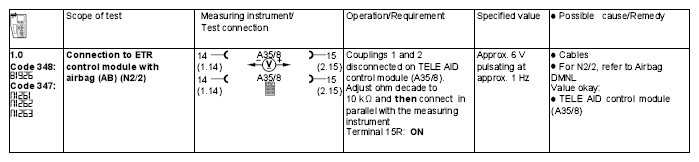

Fig 1: TELE AID Test Of Electrical System Connection To Emergency Tensioning Retractor (ETR) With Airbag (AB) Control Module
G04634846Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
