TELE AID control module connector assignment - AD82.95-P-2000-02B

Models 129, 208.3 as of 1.6.98 with CODE (347) TELE AID emergency call system (D2B)

Models 202, 210 as of 1.6.98 with CODE (347) TELE AID emergency call system (D2B) with CODE (930) taxi emergency call

Connector assignments

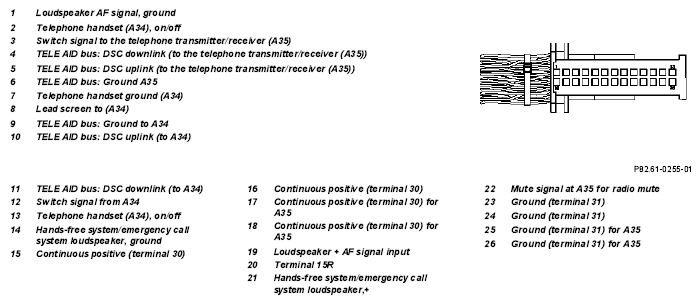

Fig 1: TELE AID Control Module Connector Assignment - Connector Assignments

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Connector 1 at the TELE AID control module (A35/8)

Fig 2: TELE AID Control Module Connector Assignment - Connector 1 At TELE AID Control Module (A35/8)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Connector 2 at the TELE AID control module (A35/8)

Fig 3: TELE AID Control Module Connector Assignment - Connector 2 At Tele Aid Control Module (A35/8)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
