GPS antenna, testing, electrical system, Audio 30 APS - AD82.61-P-6001-05A

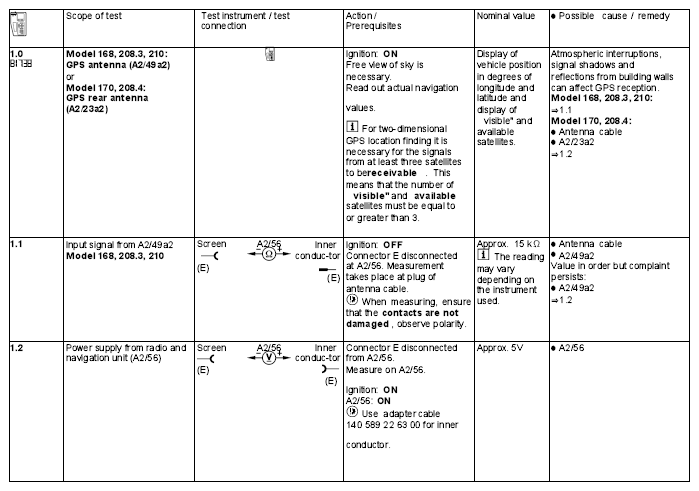

Fig 1: GPS Antenna, Testing, Electrical System, Audio 30 APS

G04634797

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
