Electrical System - Self-Diagnostic System - 210 Chassis
>>
Self-Diagnostic System
>>
Emergency alarm activation switch, testing electrical system, emergency alarm - AD82.25-P-6002-01B
Emergency alarm activation switch, testing electrical system, emergency alarm - AD82.25-P-6002-01B

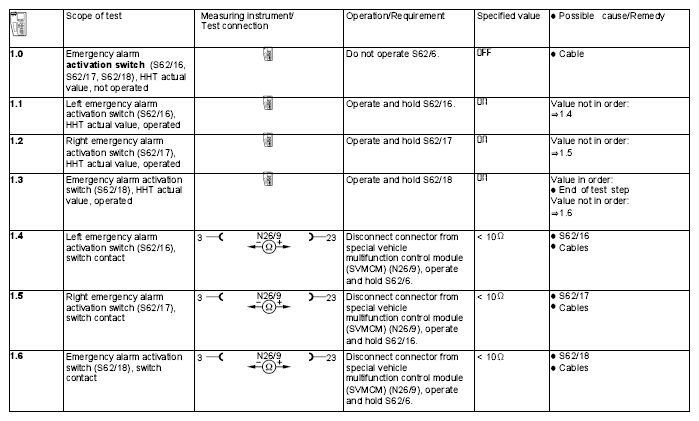

Fig 1: Emergency Alarm Activation Switch, Testing Electrical System, Emergency Alarm
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
