TELE AID, location of components - GF82.95-P-0001-01B

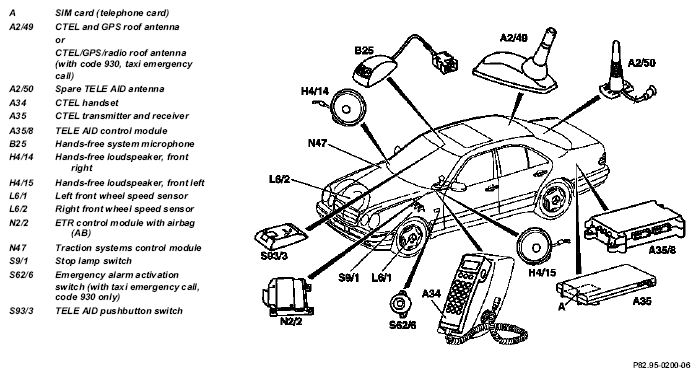

Fig 1: Identifying TELE AID, Location Of Components (1 Of 4)

G04633689

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
