TELE AID arrangement of components - GF82.95-P-0001-01DA

Fig 1: Identifying TELE AID, Location Of Components (3 Of 4)
G04633691Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

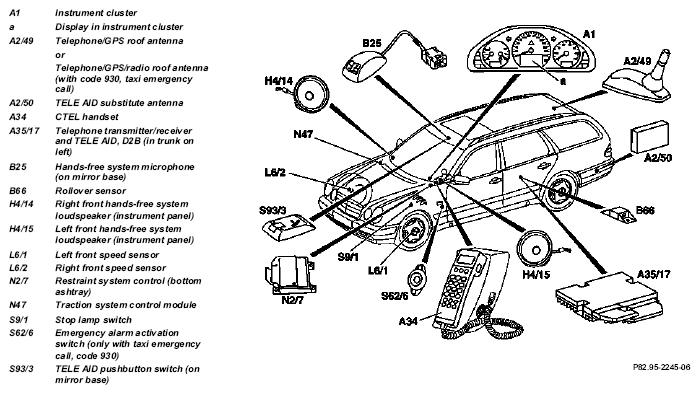

Fig 2: Identifying TELE AID, Location Of Components (4 Of 4)
G04633692Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
