Special signal system official and emergency service vehicles, location of components - GF82.25-P-0001-01A

Location of components

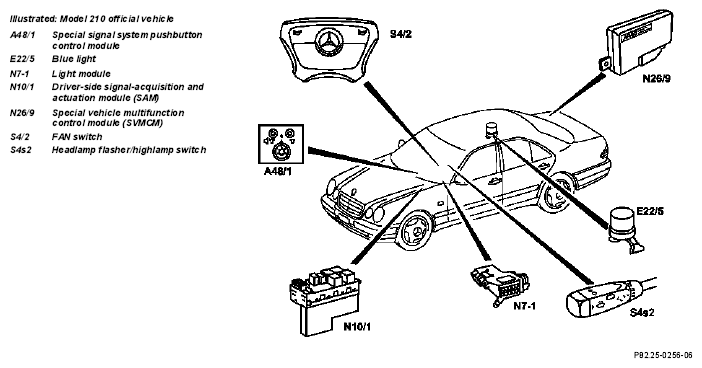

Fig 1: Identifying Special Signal System Official And Emergency Service Vehicles Components Location
G04636857Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
