Rear window wiper system, location of components - GF82.30-P-0004-01B

Location of components

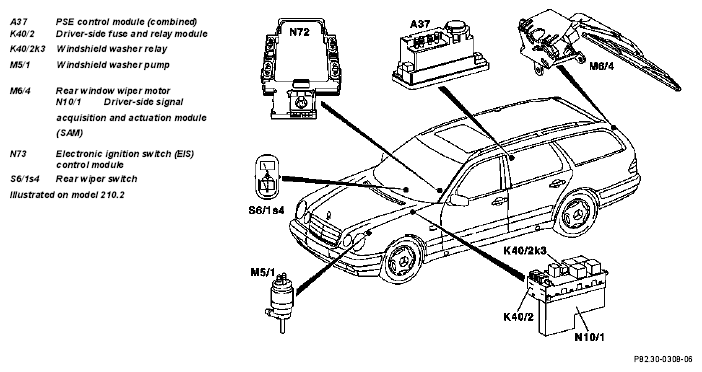

Fig 1: Identifying Rear Window Wiper System Components

G04636887

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
