Rear window wiper system, interlinkage of components - GF82.30-P-0004-02A

Model 202 T-model

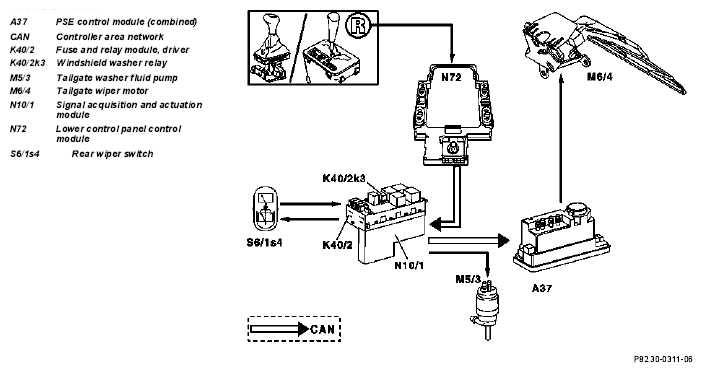

Fig 1: Identifying Rear Window Wiper System Interlinkage Components (Model 202 T-Model)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Model 210 T-model

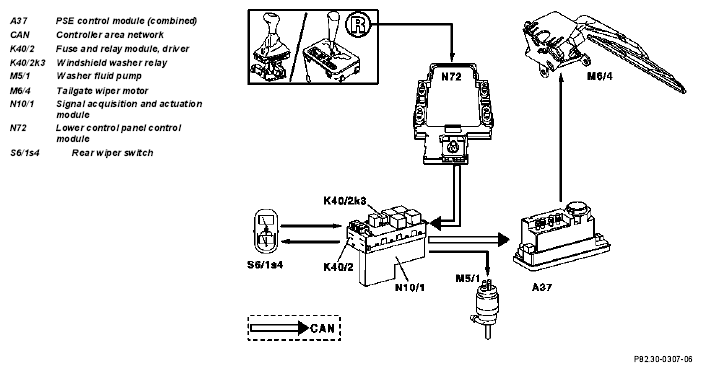

Fig 2: Identifying Rear Window Wiper System Interlinkage Components (Model 210 T-Model)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
