Radio (RD) arrangement of operating elements - GF82.60-P-0001-02M

MB radio and navigation operating unit, APS as of 01.01.98

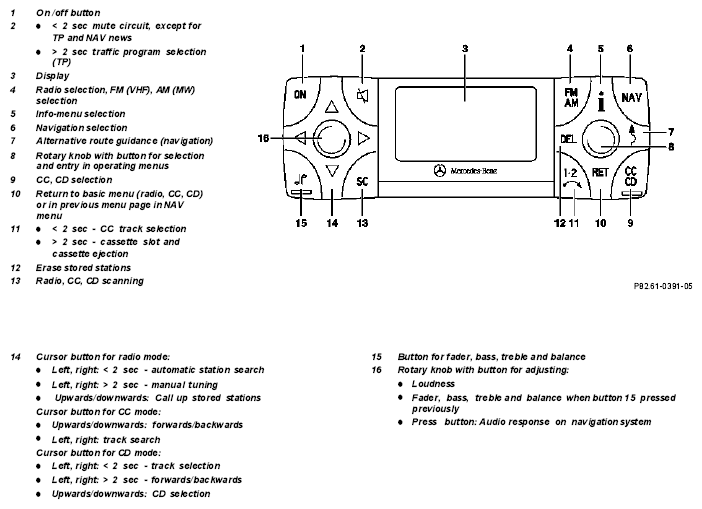

Fig 1: Identifying Radio (RD) Controls Location

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
