Location of turn signal/hazard warning flasher components - GF82.25-P-0002-01A

Illustrated on model 210

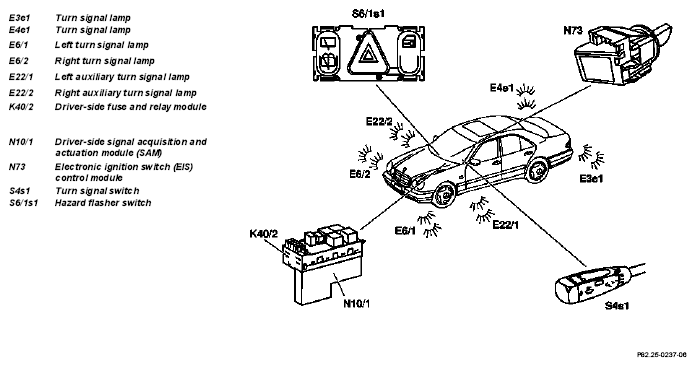

Fig 1: Identifying Turn Signal/Hazard Warning Flasher Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
