Interlinkage of turn signal/hazard warning flasher components - GF82.25-P-0002-02A

Illustrated on model 210

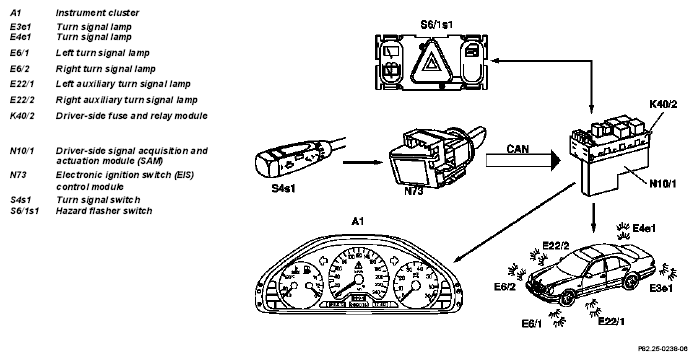

Fig 1: Identifying Interlinkage Of Turn Signal/Hazard Warning Flasher Components
G04636860Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
