Interior lighting, interlinkage of components - GF82.20-P-0002-02A

Models 202, 210 sedan, C208

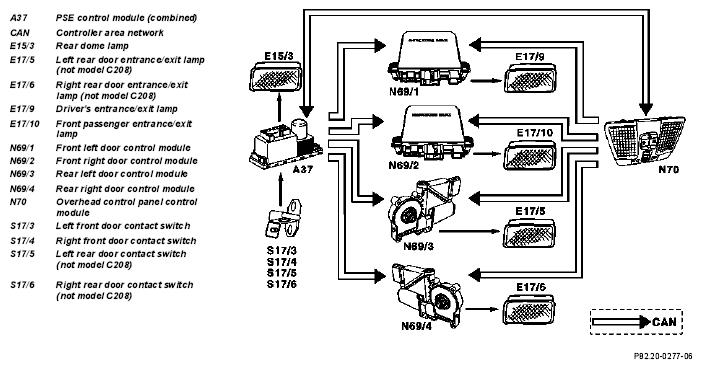

Fig 1: Identifying Interior Lighting, Interlinkage Components (Models 202, 210 Sedan, C208)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Model 202 T-model

Fig 2: Identifying Interior Lighting, Interlinkage Components (Model 202 T-Model)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Model 210 T-model

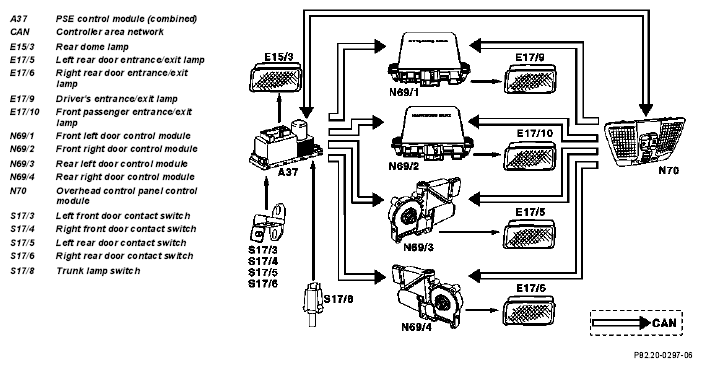

Fig 3: Identifying Interior Lighting, Interlinkage Components (Model 210 T-Model)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
