Interior lighting (IL), location of components - GF82.20-P-0002-01F

Location of components, sedan

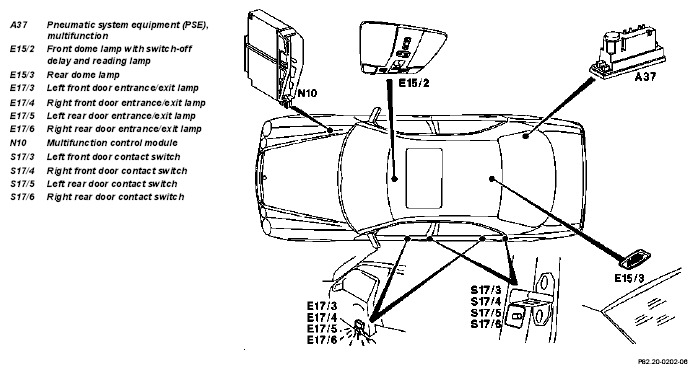

Fig 1: Identifying Interior Lights (IL) Components Location (Sedan)
G04636840Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Location of components, T-model

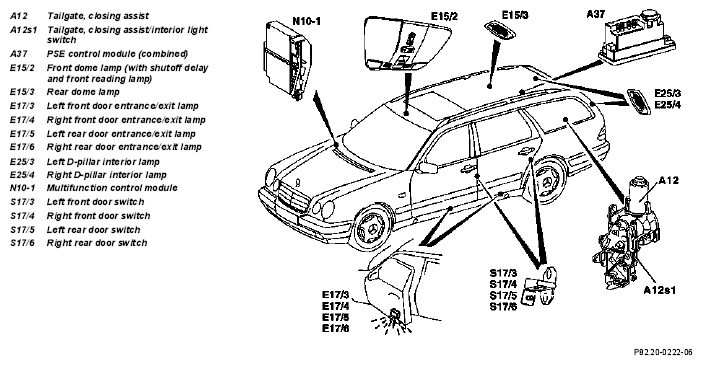

Fig 2: Identifying Interior Lights (IL) Components Location (T-Model)
G04636841Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
