Fiber optic cable, location - GF82.00-P-4000-01A

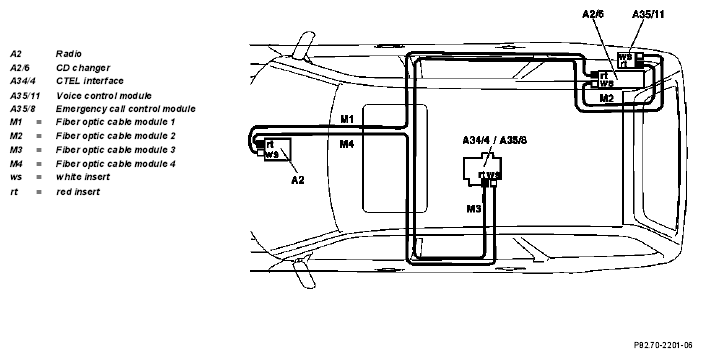

Fig 1: Identifying Fiber Optic Cable Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Illustrated on model 210 T-model with cellular telephone

Fig 2: Identifying Fiber Optic Cable Components (On Model 210 T-Model With Cellular Telephone)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fiber optic cable installed in vehicle

Illustrated on model 210 T-model with permanently installed telephone or TELE AID

Fig 3: Identifying Fiber Optic Cable Components (On Model 210 T-Model With Permanently Installed Telephone)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
