Emergency alarm system position of components - GF82.25-P-0003-01A

Position of the components

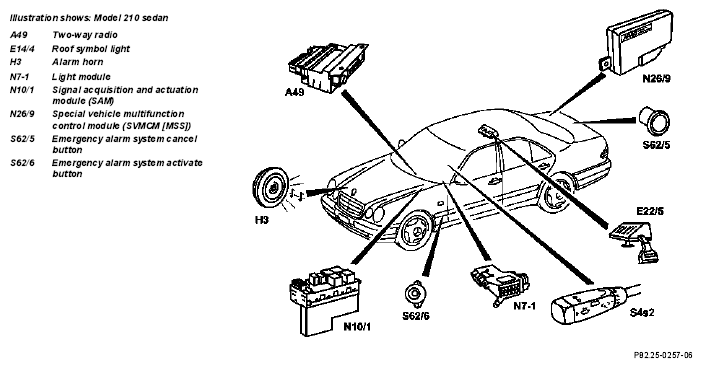

Fig 1: Identifying Emergency Alarm System Components

G04636861

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
