Auto pilot system (APS), location of components - GF82.61-P-0001-01B

Model 210.0 from 1.6.96 to 31.12.97 with code 351

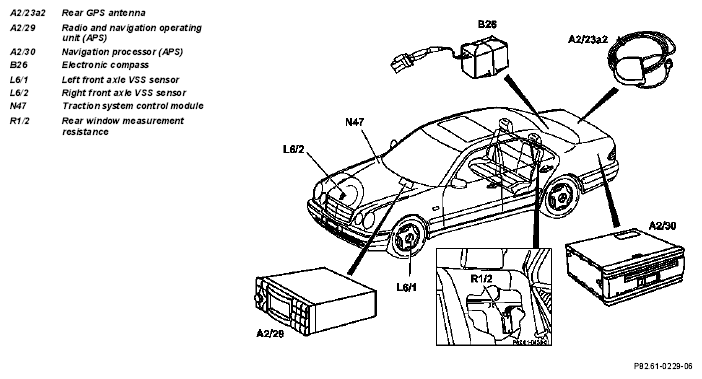

Fig 1: Identifying Auto Pilot System (APS) Components
G04636922Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
