Removing and installing switch group in center console - AR72.29-P-0001F

MODEL 210

MODEL 202 as of 1.9.95

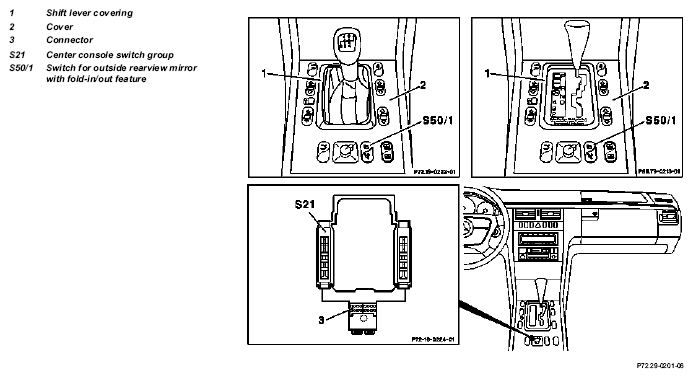

Fig 1: Identifying Switch Group In Center Console Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Removal, installation
1	Unclip shift lever covering (1)
2	Unclip cover (2) toward top/bottom
3	Pull off connector (3)
4	Unclip center console switch group (S21)	The center console switch group can only be replaced completely
5	Reinstall in opposite order
